Technical Specification

Blower unit dimensions

W 345mm x H 180mm x D 334mm

Standard cushion dimensions

W 570mm x H 380mm x D 590mm

Tall cushion dimensions

W 570mm x H 455mm x D 590mm

Standard Cushion stroke height

1.5 - 380mm

Tall cushion stroke height

1.5 - 455mm

Operating pressure +5%

Normal to 105 mbar    maximum to 125 mbar

Maximum working load

127kg

Hose length

3.70 metres

Control lead length

3 metres

Weight

Blower unit 4kg. Cushion & hose 1.9kg. Total 6kg

Air switch rating

21A 250Vac

Pressure switch rating

10A 250Vac

Control valve rating

240Vac 50Hz

Motor power rating

1000W + 1.5%

Voltage

240Vac 50Hz

Fuse rating

13A

Mode of operation

(ED 10%) Drive time to 2 mins. Stop time to 18 mins

Transport & storage conditions:

Temperature

-20 to 50 Deg. C

Humidity (non-condensating)

20% to 95%

Altitude

500 hPa to 1060 hPa

Operating conditions:

Temperature

0 to 50 Deg. C

Humidity (non-condensating)

30% to 95%

Altitude

700 hPa to 1060 hPa

Maximum noise level

70 dB (A)

Classifications:

Protection class

2

Device type

BF

Water ingress

IPX4

Medical device

Class 1

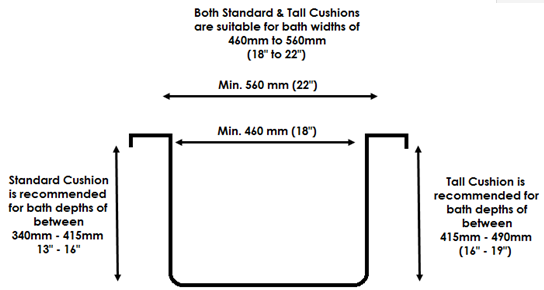

Recommended Bath Sizes:

The bath buddy lift is suitable for most baths.
As a guide to whether a tall or standard cushion is required, please refer to the diagram below.
If a bath falls outside of the guidelines below please contact us for advice.
